OPERATING PROCEDURE

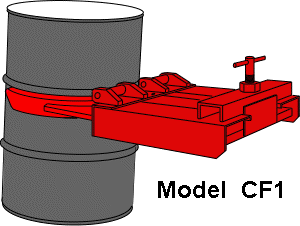

Secure the DRUM CLAMP to the lift truck. Contact the drum(s) with the arms about six inches below the rolling hoop.  Drive up snug and lift. Holding is maintained by the gravity force of the drum(s) on the gripping arms. Bouncing, jarring or other rough handling may dislodge drum(s).  To disengage arms, lower the drum(s) to a solid surface, and continue to lower the attachment about six inches before withdrawing straight back.

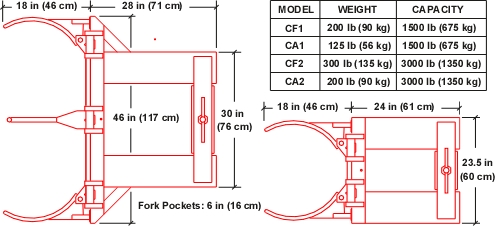

LOAD CENTER SPECIFICATIONS   and   PRICES

Horizontal Center of  Gravity of  Attachment is measured either forward(+) or back(-) from the tip of the forks if fork-mounted, and is measured forward(+) from the faceplate of the lift truck if carriage-mounted.

Vertical Center of  Gravity of  Attachment is measured either up(+) or down(-) from the horizontal face of the forks if fork-mounted, and is measured down(-) from the top of the faceplate of the lift truck if carriage-mounted.

Load Center of drum(s) is measured forward(+) from the tip of the forks for fork-mounted attachments, and from the faceplate of the lift truck for carriage-mounted attachments.

Vertical Center of  Gravity of  Load (full drum handled as shown) is measured either up(+) or down(-) from the horizontal face of the forks for fork-mounted attachments, and is measured down(-) from the top of the faceplate of the lift truck for carriage-mounted attachments.
