KUGHLER ENTERPRISES, INC / DRUM CLAMPING ATTACHMENTS FOR FORK LIFT TRUCKS

K U G H L E R E N T E R P R I S E S, I N C.
3408 W Wild Rose Rd · Deer Park WA 99006 USA · Tel: (206) 789-0667
Email: sales@kughler.com

RIM HANDLER

Fork or carriage mounted · One or two drums · Rugged steel construction · Completely mechanical

OPERATING PROCEDURE
Secure the RIM HANDLER to the lift truck. With the mast slightly forward-tilted, contact the drum(s) with the gripping head below the top. Raise (not by back-tilting) and the grippers will lock onto the rim of the drum(s). Holding is maintained by the gravity force of the drum(s) being handled. Bouncing, jarring or other rough handling may dislodge drum(s). To disengage grippers, lower the drum(s) to a solid surface, and continue to lower the handler about four inches before withdrawing.

LOAD CENTER SPECIFICATIONS and PRICES

Horizontal Center of Gravity of Attachment is measured either forward(+) or back(-) from the tip of the forks if fork-mounted, and is measured forward(+) from the faceplate of the lift truck if carriage-mounted.

Vertical Center of Gravity of Attachment is measured either up(+) or down(-) from the horizontal face of the forks if fork-mounted, and is measured down(-) from the top of the faceplate of the lift truck if carriage-mounted.

Load Center of drum(s) is measured forward(+) from the tip of the forks for fork-mounted attachments, and from the faceplate of the lift truck for carriage-mounted attachments.

Vertical Center of Gravity of Load (full drum handled as shown) is measured either up(+) or down(-) from the horizontal face of the forks for fork-mounted attachments, and is measured down(-) from the top of the faceplate of the lift truck for carriage-mounted attachments.

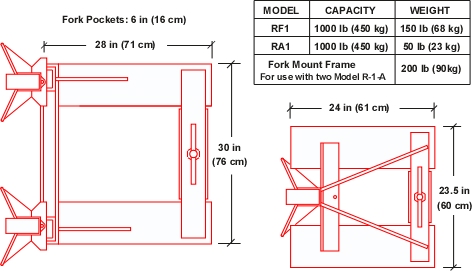

Model No.
RF1
RA1

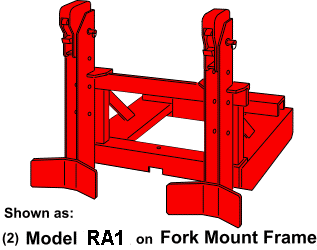

RA1 (2) on Fork Mount Frame

HCGA
-6 in (15 cm)
+3 in (8 cm)
-2 in (5 cm)

VCGA
+6 in (15 cm)
-1 in (3 cm)
+6 in (15 cm)

LC
+12 in (30 cm)
+17 in (43 cm)
+17 in (43 cm)

VCGL
+6 in (15 cm)
-10 in (25 cm)
+6 in (15 cm)

PRICE
$950.00
770.00
2190.00
